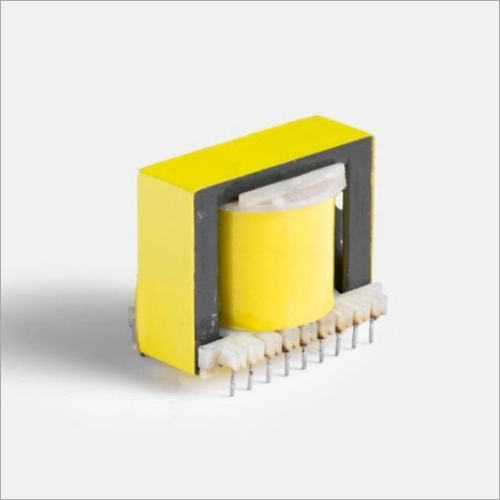

Ferrite core Transformer

Name: Ferrite core Transformer
Brand: BHOOMI ELECTRONICS
Price: 70 INR
Availability: InStock

70 INR/Piece

Get a Price/Quote

Product Details:

High Voltage Custom, up to 1000V (application dependent)
Rated Voltage Up to 1000V (primary/secondary based on use)
Capacity Rated as per wattage (e.g., 25VA, 50VA, 100VA, etc.)
Coil Material High conductivity copper
Voltage Booster Type Step-up / step-down (as per need)
Load Loss Minimal (optimized for low core loss)
Low Voltage 1.5V 48V or as specified
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ferrite core Transformer Price And Quantity

Price 70 INR/Piece
Minimum Order Quantity 500 Piece

Ferrite core Transformer Product Specifications

Coil Number Primary and secondary coils (customizable)
Efficiency Above 90%
Voltage Booster Type Step-up / step-down (as per need)
Load Loss Minimal (optimized for low core loss)
Product Type Ferrite core transformer
Power Scope 1W 1000W (varies by model)
Phase Single phase or three phase (depending on design)
Material Ferrite core, copper winding
High Voltage Custom, up to 1000V (application dependent)
Low Voltage 1.5V 48V or as specified
Usage Power supply, electronic circuits, voltage conversion, audio systems
Operating Temperature -25C to +85C
Cooling Type Air cooled
Dimension (L*W*H) Varies by type: Typical 28mm x 23mm x 18mm and up
Frequency (MHz) Up to 10 MHz (typical range 20 kHz - 1 MHz)
Weight 50g 3kg (depends on size/model)
Coil Structure Toroidal or EI core, multiple winding
Rated Voltage Up to 1000V (primary/secondary based on use)
Output AC or DC (based on secondary design)
Capacity Rated as per wattage (e.g., 25VA, 50VA, 100VA, etc.)
Coil Material High conductivity copper

Ferrite core Transformer Trade Information

Supply Ability 25000 Piece Per Day
Delivery Time 1 Week
Sample Available Yes
Sample Policy Free samples are available
Packaging Details Carton box packing available.
Main Domestic Market All India

Product Description

Owing to our expertise in this domain, we are engaged in manufacturing, trading and supplying the best quality Ferrite Transformer. The transformer provided by us used for power transferring and also for electronic switching device.Owing to its excellent performance and high functionality, this transformer is highly cherished in the market. This transformer is manufactured by our skilled professionals in adherence with set market standards using an excellent quality components and cutting-edge technology. Clients can purchase this Ferrite Transformer from us at pocket friendly prices,

Features:

Negligible maintenance
Rigid construction
Anti corrosive body
Excellent functionality

Product details

Power	60W
Color	Yellow And Black
Phase	Single Phase
Material	Ferrite
Model Name/Number	EI40
Input Voltage	415V
Current	3Amp
Frequency	60Hz
Cooling Type	Air Cooled
Usage/Application	Switching Power Supply

Wide Selection of Core Shapes and Mounting Options

Choose from toroidal, EE, EI, or custom core shapes to suit your circuit requirements. With both through-hole and surface mount package types available, installation is streamlined for diverse applications including power supplies and audio systems. Mounting methods include PCB and chassis, providing flexibility and stability for different environments.

Efficient Operation for High-Frequency Circuits

Optimized for low leakage inductance and high efficiency above 90%, these transformers are specifically designed for high-frequency use. Typical operating frequency ranges from 20 kHz up to 10 MHz, making them ideal for SMPS, RF transformers, and voltage conversion tasks. Minimal loss and air-cooled operation ensure reliable performance.

Customization for Specialized Needs

Custom options are available for voltage, current, frequency, pin configuration, and physical dimensions. Whether you need step-up or step-down voltage conversion, varied coil materials, or specific power handling (1W to 1000W), solutions can be tailored to match unique requirements. Rated voltage can reach up to 1000V with selectable primary and secondary configurations.

FAQs of Ferrite core Transformer:

Q: How do I select the appropriate core shape for my transformer application?

A: The core shapetoroidal, EE, EI, or customshould be chosen based on your circuit needs. Toroidal cores are ideal for compact layouts and low electromagnetic interference, while EE and EI cores suit conventional power supply designs. Consult the manufacturer for guidance on custom shapes tailored to your specific electrical parameters.

Q: What is the process for customizing voltage, current, or frequency specifications?

A: Customization involves specifying your desired voltage (up to 1000V), current rating, frequency (20 kHz to 10 MHz), pin configuration, and dimensions. Share your requirements with the supplier or manufacturer, who will then design the transformer to match your application and provide technical details prior to production.

Q: When should I use a surface mount versus through-hole transformer package?

A: Surface mount transformers are preferred for automated assembly and compact PCBs, allowing for space savings. Through-hole packages are ideal for mechanical strength and ease of manual installation, especially in chassis-mounted setups or where durability in vibration-prone environments is needed.

Q: Where are these ferrite core transformers typically used?

A: These transformers are commonly deployed in inverter circuits, switch mode power supplies (SMPS), RF transformer applications, power adapters, and audio systems. Their high efficiency and frequency response suit power conversion, signal transmission, and specialized electronics across industrial, consumer, and communication sectors.

Q: What benefits does high dielectric strength provide in these transformers?

A: High dielectric strength (up to 2.5kV, model-dependent) ensures robust insulation, reducing the risk of electrical breakdown and enhancing safety in high-voltage or high-frequency applications. This improves the transformers reliability and operational lifespan, especially under demanding conditions.

Q: Can I request transformers for step-up or step-down voltage applications?

A: Yes, the transformer design can be tailored for either step-up or step-down voltage conversion, based on your applications needs. Specify your input and output voltage requirements during ordering for optimal performance and compatibility with your system.
